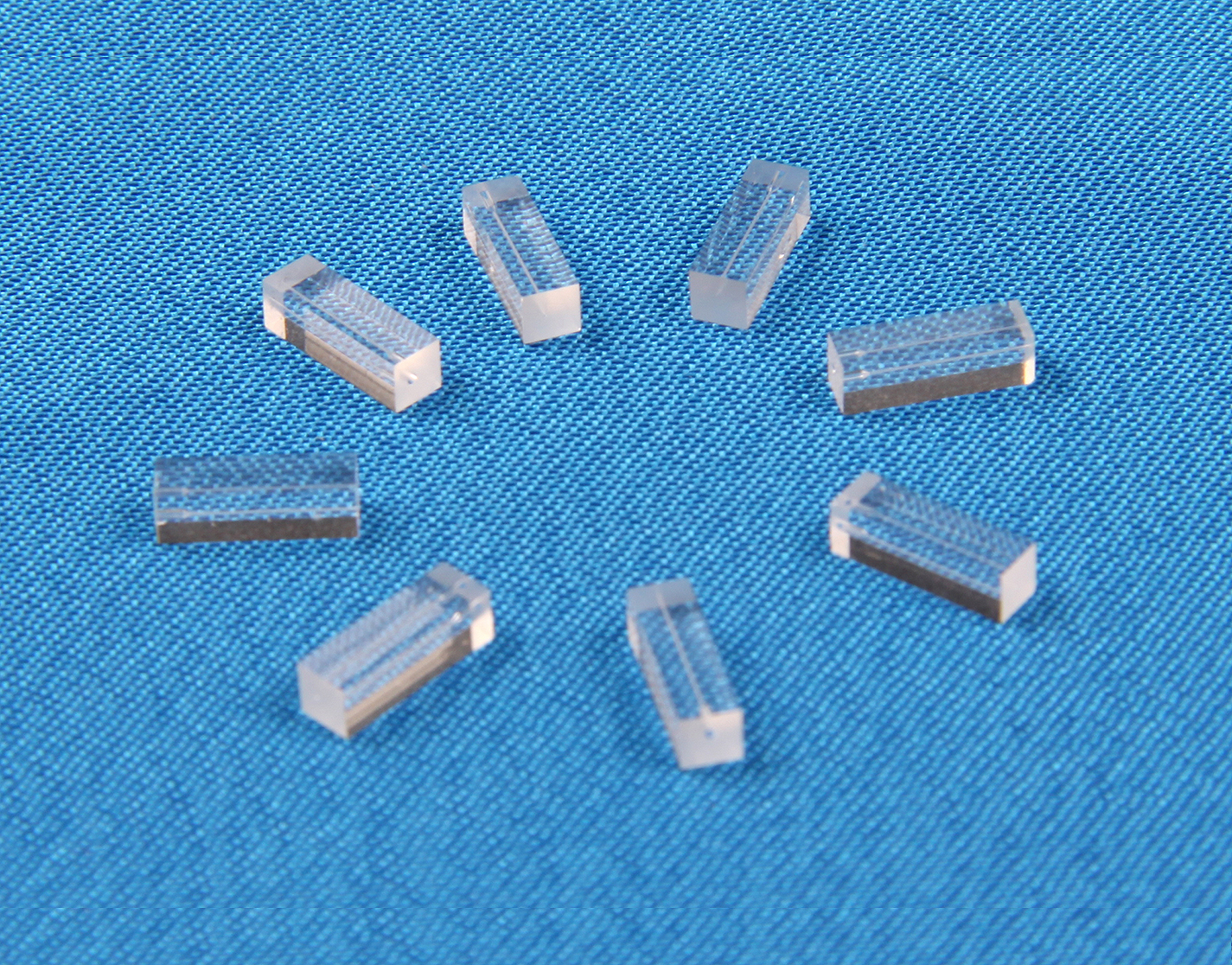

Glass Capillary
GTLINK precision capillaries, which can be used in fiber optical components, are made by our special technique to ensure the high precision and good quality. The tolerance of inner and outer radius is small.Their main material are quartz and pyrex.The inner hole shape of the fiber is circular,D-shape and rectangle which has many applications for holding one, two or four fibers.
Specification
|

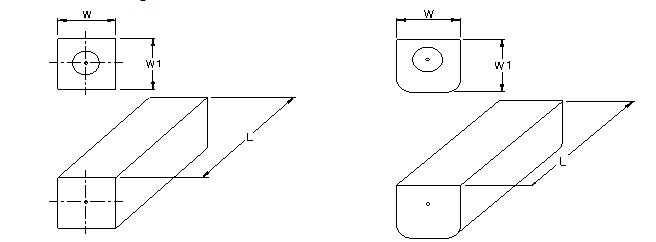

NO.1 |
2.0*2.0 Glass Capillary |
||
|
Parameter |
Nominal Value |
Tolerance |
Unit |
|
Length（L） |
6~8 |
±0.25 |
mm |
|
Width(W/W1) |
2 |
±0.1 |
|
|
Inside Diameter(ID) |
0.126 |
±0.001 |
|
|
Material |
Quartz |
||
|
Notes |
Other diameters are available upon request |
||
| NO.2 | 2.5*2.5Glass Capillary | ||
| Parameter | Nominal Value | Tolerance | Unit |
| Length(L) | 6~8 | ±0.25 | mm |
| Width(W/W1) | 2.5 | ±0.1 | |
| Inside Diameter(ID) | 0.126 | ±0.001 | |
| Material | Quartz | ||
| Notes | Other diameters are available upon request | ||

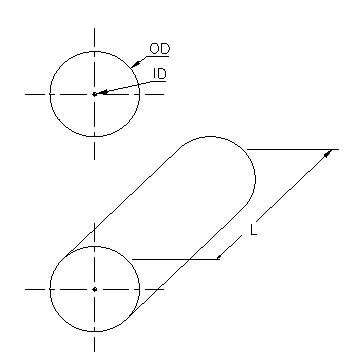

| NO.2 | 1.8 and 1.0 Circular Glass Capillary | ||
| Parameter | Nominal Value | Tolerance | Unit |
| Length(L) | 5~7 | ±0.25 | mm |
| Width(W/W1) | 1.8 | ±0.005 | |
| Inside Diameter(ID) | 0.126 | ±0.001 | |
| Material | Quartz or Pyrex, or Borosilicate | ||
| Notes |
Other diameters are available upon request
|
||
订购信息
| GGC- | X- | X- | XX- | X- |
| G=GTLINK | Material | Outer Diameter | Inside Diameter | Length |
| G=Glass | P=Pyrex | OD | ID | L |
| C=Capillary |
