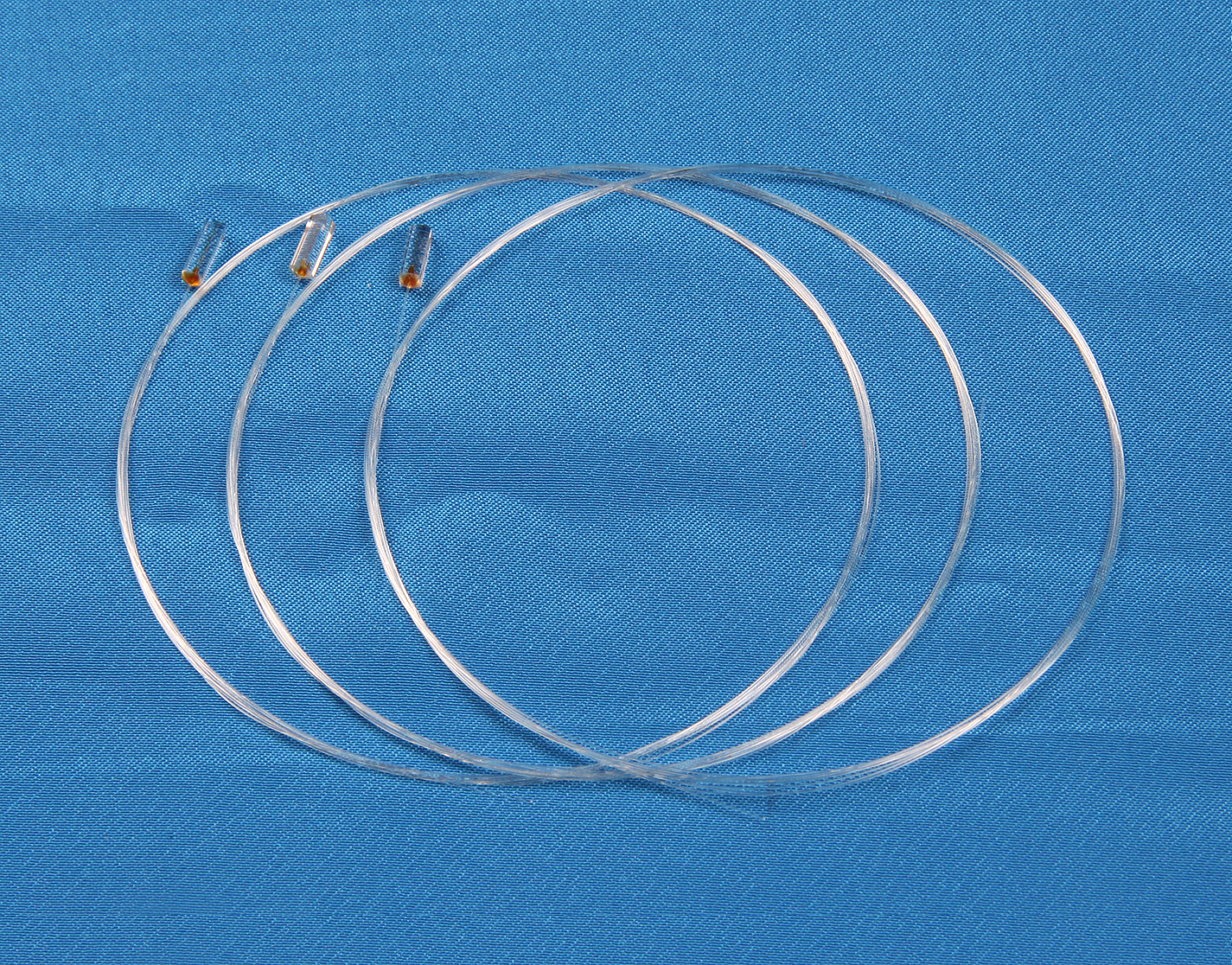

pigtail
Application
1.Collimators
2.PLC Splitters
3.Fiber-optical components
4.DWDM/CWDM
5.MEMS products
Specifications
| Parameter | Typical Value |
| AR coating | 1310~1550nm |
| Polishing Angle | 0°，8°or upon Clients |
| Typical Reflect | 0.15% |
| Max Reflect | 0.25% |
| Typical Return Loss(dB) | 65 |
| Min Return Loss (dB) | 60 |
| Working Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Dimension | 1.8(OD)×5~5.5(L)mm; 1.0(OD)×5~6(L)mm; 2.5W×2.5(W1)×8.0(L); 2.0(W)×2.0(W1)×8.0(L); |
| or upon Clients | |
| Fiber Type | 250um bare fiber or 900um tight buffered fiber |
