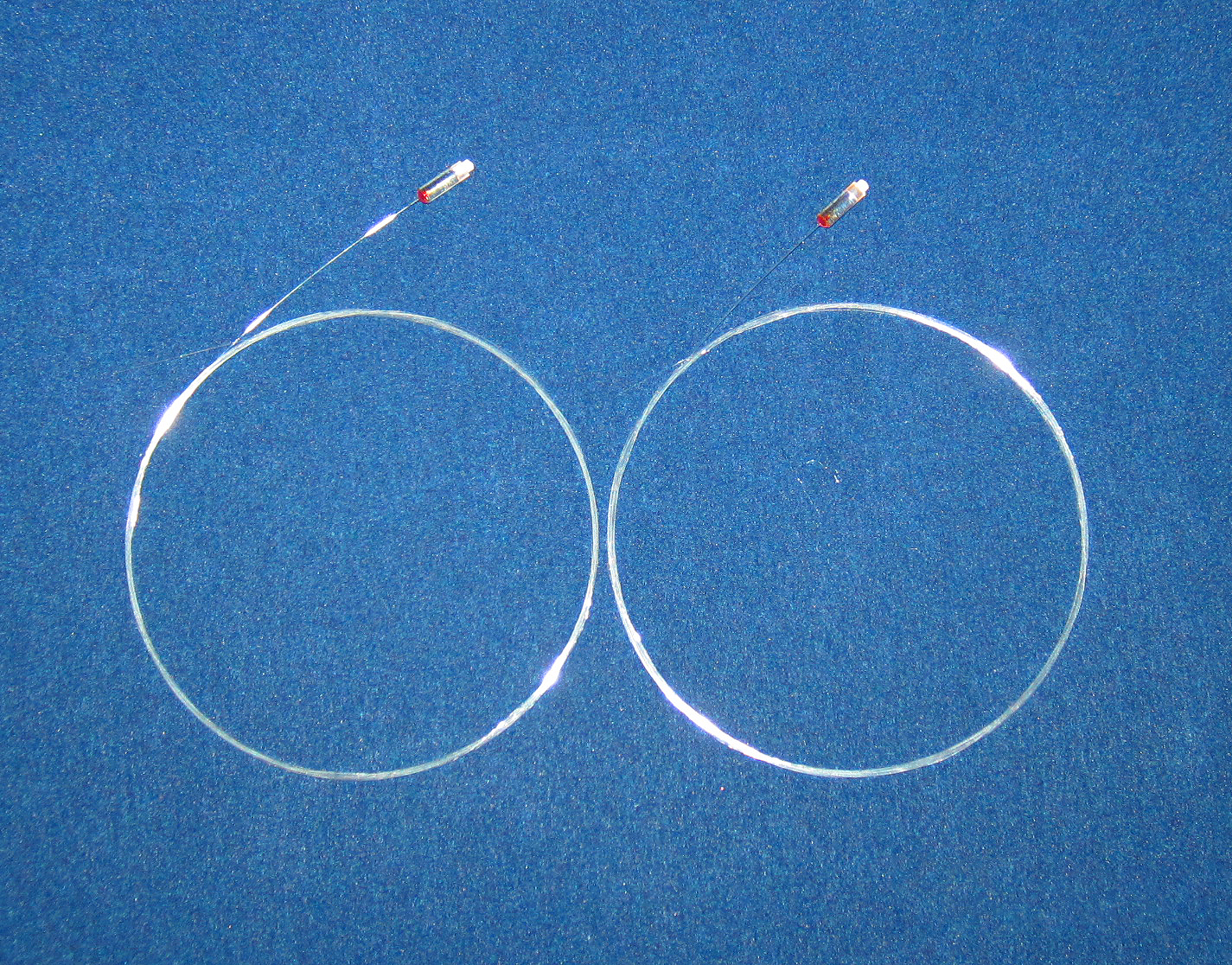

Collimators
Features
1.Low Insertion Loss
2.High Return Loss
3.High stability and reliability
4.Flexible Customization
Application
1.Fiber Collimating
2.Fiber Coupling
3.Optical passive devices
Specification
| Parameter | Typical Value A | Typical Value B |
| Wavelength Range | 1310~1550nm | |
| Typical Insertion Loss(dB) | 0.17 | 0.2 |
| Max Insertion Loss(dB) | 0.2 | 0.25 |
| Typical Return Loss | 65 | 60 |
| Working Temperature | -20℃ ~ +75℃ | |
| Storage Temperature | -40℃ ~ 85℃ | |
| Dimension | 3.2×9 or 10mm Gold-plated tube/2.78×9mm Glass tube or upon Clients | |
| Fiber Type | 250um bare fiber or 900um tight buffered fiber | |
