方型单孔毛细管
光通汇联有限公司的高精度玻璃毛 细管，为保证该精度和高质量用特殊技术制造，可用于光学部件。内外径误差小。主要材料为石英和硼硅玻璃。光纤内径的形状有圆形，D形和方形，用途广泛，可容纳1个，2个或者4光纤。
详述
|

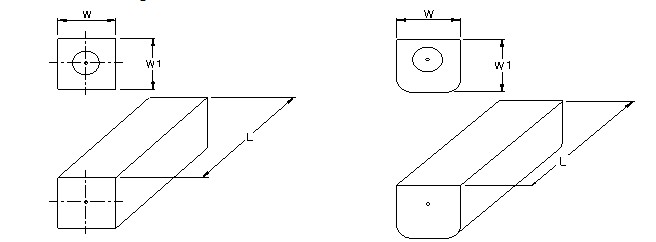

NO.1 |
2.0*2.0 Glass Capillary |
||
|
Parameter |
Nominal Value |
Tolerance |
Unit |
|
Length（L） |
6~8 |
±0.25 |
mm |
|
Width(W/W1) |
2 |
±0.1 |
|
|
Inside Diameter(ID) |
0.126 |
±0.001 |
|
|
Material |
Quartz |
||
|
Notes |
Other diameters are available upon request |
||
| NO.2 | 2.5*2.5Glass Capillary | ||
| Parameter | Nominal Value | Tolerance | Unit |
| Length(L) | 6~8 | ±0.25 | mm |
| Width(W/W1) | 2.5 | ±0.1 | |
| Inside Diameter(ID) | 0.126 | ±0.001 | |
| Material | Quartz | ||
| Notes | Other diameters are available upon request | ||

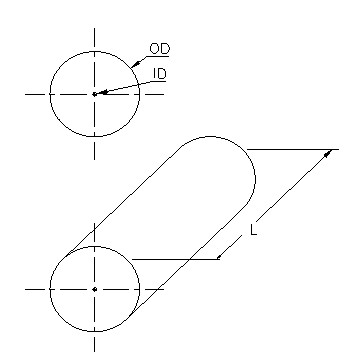

| NO.2 | 1.8 and 1.0 Circular Glass Capillary | ||
| Parameter | Nominal Value | Tolerance | Unit |
| Length(L) | 5~7 | ±0.25 | mm |
| Width(W/W1) | 1.8 | ±0.005 | |
| Inside Diameter(ID) | 0.126 | ±0.001 | |
| Material | Quartz or Pyrex, or Borosilicate | ||
| Notes |
Other diameters are available upon request
|
||
订购信息
| GGC- | X- | X- | XX- | X- |
| G=GTLINK | Material | Outer Diameter | Inside Diameter | Length |
| G=Glass | P=Pyrex | OD | ID | L |
| C=Capillary |
